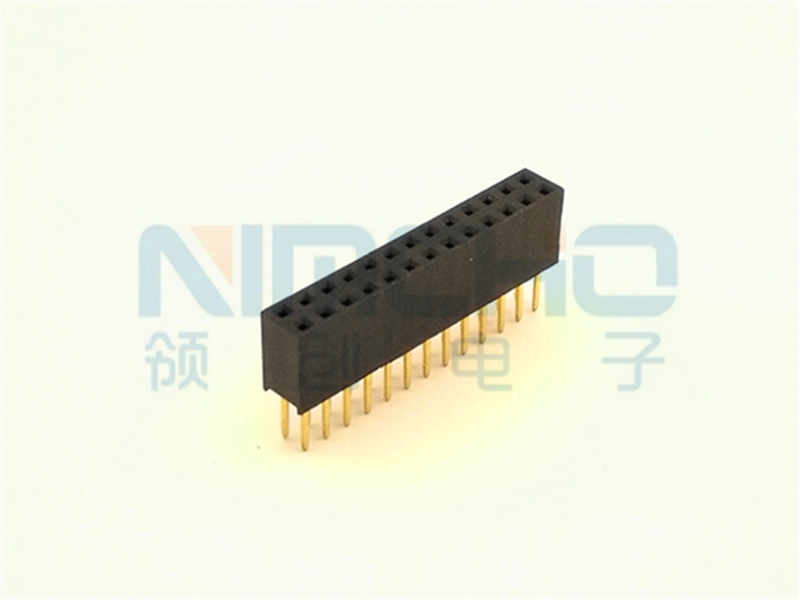

PH2.54雙排排母 塑高8.5 Y型
Specifications:
Current Rating:3 Amp
Contact resistance:20m? Max
Insulator resistance:1000M? min.
Withstanding Voltage:500V AC/Minute
Operating Temperature Range:-40°~+105°C
Max Processing Temp: 230° for 30~60 seconds
(260° for 10 seconds)
Material And Finish
Insulator:Polyester,(PA6T/PBT UL94V-0)
Contact:Phosphor Bronze/Brass
Contact Plated:Full Gold,Full Tin,
Selective plate
