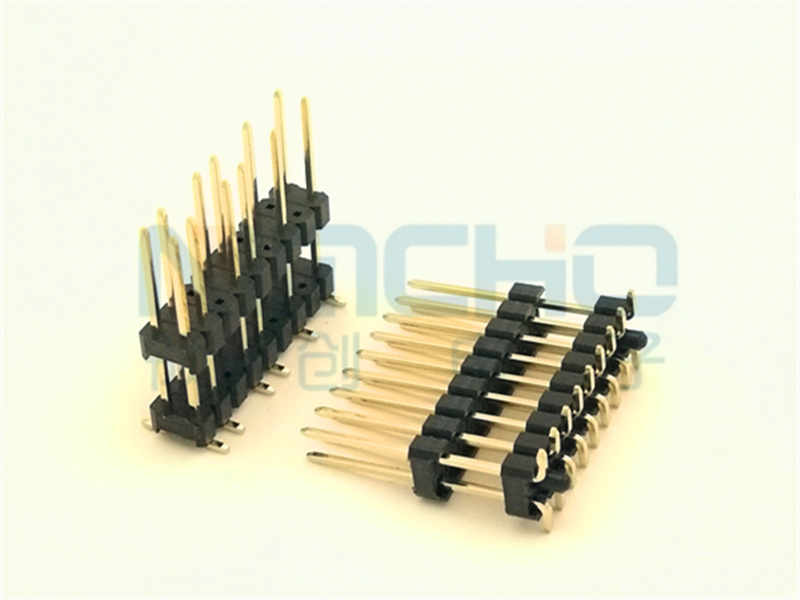

PH2.54 雙排雙塑帶柱SMT排針
Specifications:
Current Rating:3.0 Amp
Voltage Rating:250V AC/DC
Contact resistance:20m? Max
Insulator resistance:1000M? min.
Withstanding Voltage:500V AC/Minute
Operating Temperature Range:-40°~+105°C
Material And Finish
Insulator:Polyester,(PBT/PA9T/PA6T UL94V-0)
Insulator Color:Black
Contact:Brass
Contact Plated:See Contact Plated Tab.
詳細介紹
